The Motion Sensor 360 - Mud In raises the bar for discreet automation. This Mud-in version of our widely popular Motion Sensor 360 PIR offers discerning custom installers a near invisible PIR for automating lighting, heating, AV and much more.

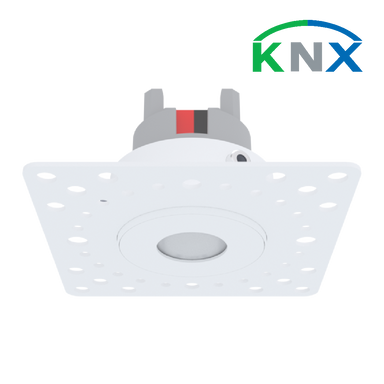

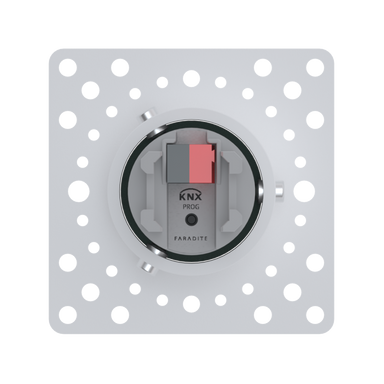

This ultra discreet, completely flat PIR is made up of three main components: the machined aluminum mud in mount, the sensor technology insert and the paintable front disc.

We have also added the option to mask the sensor detection area with the Motion Sensor 360 - Mud-In sensor. Small, infrared blocking stickers are supplied with the sensor and can be applied to the sensor providing a customisable PIR solution without any visual impact on the finished sensor.

Designed to be installed directly in to drywall. Requires the entire ceiling/surface to be mudded (level 5 finish)

Black lens cover included for use with darker surfaces. *Brightness sensor related functionality will not work when black lens cover is fitted*

Meticulously designed to deliver the ultimate discreet motion sensing solution.

- KNX technology with multiple concurrent functions and advanced parameters
- Just 14mm visible PIR lens
- Primed front disc can be painted for further blending in to finished surface
- Invisible masking solution

KNX Features

The sensor can have up to 4 independent functions each with independent timeouts and configuration parameters. The range of functions each function can perform are: Switching, Dimming Value Transmitter, Scene, HVAC, Advanced (value transmitting including RGB) and Constant light control.

The Constant light control feature (daylight harvesting) ensures a set brightness / lux level is achieved by dynamically dimming the lighting in the room. The Faradite Motion Sensor 360 - KNX also allows for the brightness setpoint to be set via group object. A standby dimming level can be also be set.

Day / Night modes are available for each of the 4 independent functions allowing each to perform differently during day and night, with different timeouts if required.

Also, the master / slave functionality allows KNX installers to expand the detection capabilities of the PIR.

Advanced push button input functionality allows users to manually interact with the motion sensor by extending timeouts, blocking the sensor and more.

Also, a finely tuned internal brightness sensor accurately measures the Lux level in the room (external brightness group object available) no matter the light source, meaning fluorescent lamps, LEDs or halogen/incandescent lamps can all be accurately measured.

4 operating modes allow various levels of automation to be configured meaning the sensor can be configured as fully automatic (Auto on / off), absence (manual on, auto off), presence (auto on, manual off) or fully manual (manual on, manual off).

Long motion detection can be configured (separately across each function if required) to trigger different actions depending on the length of time a person is detected. E.g. lights may come on instantly when motion is detected, but using long presence detection on the second function for HVAC control can mean the Air conditioning is only turned to comfort mode if motion is detected multiple times in a set length of time.

There are a range of powerful diagnostic tools available for the KNX integrator including a visual LED for detection validation, simple test modes for validating performance and a heartbeat mode to monitor devices KNX bus connection.

The latest ETS .knxprod file can be downloaded in ETS using the online catalogue. This product can only be used with ETS5 and ETS6.
