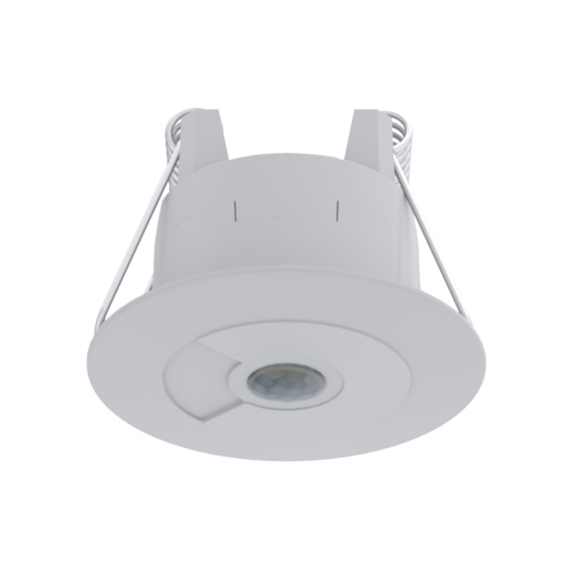

MOTION SENSOR 360 WHITE- VOLT FREE (DRY CONTACT)

$141.36
In stock
SHIPPING | TAXES | ORDERING
SKU M360-W-VOLF

Notify me when back in stock

The Faradite Motion Sensor 360 White - Volt Free (Dry Contact) is a 5-35V (12V - 24V - 35V) low profile, silent, discreet PIR (passive infrared) ceiling mounted motion sensor. Its discreet look and miniature size does not detract from the décor and architecture of your home.

The sensor can be used to automate your lighting control for an energy efficient and comfortable smart home experience.

The sensor can be used with 5-35V (12V - 24V - 35V) home/building/lighting control systems that have volt free / dry contact inputs, such as Lutron, Crestron, Loxone and Control4.



DOWNLOAD PDF DATASHEET

Discreet motion sensing for the ultimate smart home

Simply connects to multiple systems

Simply Connects to Multiple Systems

Control4 logo

The sensor can be connected directly to a Control4 system using a simple contact closure.

Loxone logo

The sensor can be connected directly to a Loxone smart home using a single digital input.

Rako logo

Savant systems can benefit from the Faradite Motion Sensor 360 - Volt Free with easy integration.

Lutron logo

Great with Lutron lighting control systems by using any contact closure input.

Benefits


100% Silent relay


No annoying 'Click'. The Motion Sensor 360 range uses a completely silent, solid state relay.



Low profile


A subtle stylish sensor that protrudes less than 9/64" from the ceiling.



Very Small


So small it can be mounted in a business card. The visible front is just
1 59/64" across.



DC power


Low voltage power, ideal for a broad range of control systems.

Our motion sensors use the latest digital sensors

SMALL AND EFFECTIVE

Here at Faradite, design is everything, but, not at the compromise of functionality. During the design of the Motion Sensor 360 range we wanted to keep the profile to a minimum. The result, a high spec digital sensor that only protrudes 9/64" from the ceiling.

The Motion Sensor 360 range introduces a robust, discrete and stylish option for your smart home.

PUSH-FIT TECHNOLOGY
Faradite volt free dry contact motion sensor terminals with cat5 cable core

PUSH-FIT INSTALLATION

Our connectors make for a speedy installation, simply strip the solid core wire and push into the connector

Faradite volt free dry contact motion sensor terminals with sim card remover tool

REMOVE CABLE

Simply insert the supplied tool or a small screwdriver to release the wire

Faradite volt free dry contact motion sensor showing removable terminal block

REMOVABLE CONNECTORS

To remove the sensor, simply pull the connector out of the motion sensor. It couldn't be simpler

DIMENSIONS
White Faradite Motion Sensor 360 volt free dry contact 35mm dimensions
White Faradite Motion Sensor 360 volt free dry contact 49mm front dimensions
White Faradite Motion Sensor 360 volt free dry contact depth dimensions
technical specification



iNSTALLATION


To install the Faradite sensor, cut a 1 1/2" hole using a suitable hole saw. Fold the spring clips upwards and push through the hole.



CONNECTIONS



5V-35V DC @ 24V (3mA)

Volt Free Output (Normally Open)



CONNECTOR


Push fit screwless connector AWG 20- 24 suitable for CAT5 / CAT6 / CAT7.




RANGE / DETECTION AREA


Specified Range 16' 4"  When mounted at a height of 10', the sensor covers an 26' diameter floor area. When mounted at 9' it covers a floor area of 20' by 23'.

CABLE TYPES
Faradite motion sensor 360 terminals with Cat5/cat6 cables in terminals

CAT 5/6

Ideal for CAT 5/6, simply strip the solid core wire and push into the connector

Faradite motion sensor 360 terminals with Cat7 cables in terminals

CAT 7

Ideal for CAT 7, simply strip the solid core wire and push into the connector

Faradite motion sensor 360 terminals with stranded cables in terminals

STRANDED CABLE

Ideal for stranded cable (e.g. Belden Cable), simply insert the supplied sim card remover tool before pushing the wire into the connector
