MOTION SENSOR 360 PINHOLE WHITE - VOLT FREE (DRY CONTACT)

$272.40
In stock
SHIPPING | TAXES | ORDERING
SKU M360-PH-W-VOLF

Notify me when back in stock

The Faradite Motion Sensor 360 Pinhole - Volt Free sets a new frontier for sensor technology. This rear-mounted, ultra-discreet sensor allows custom installers to deliver precise motion based automation from a visible front that is just 15mm in diameter.

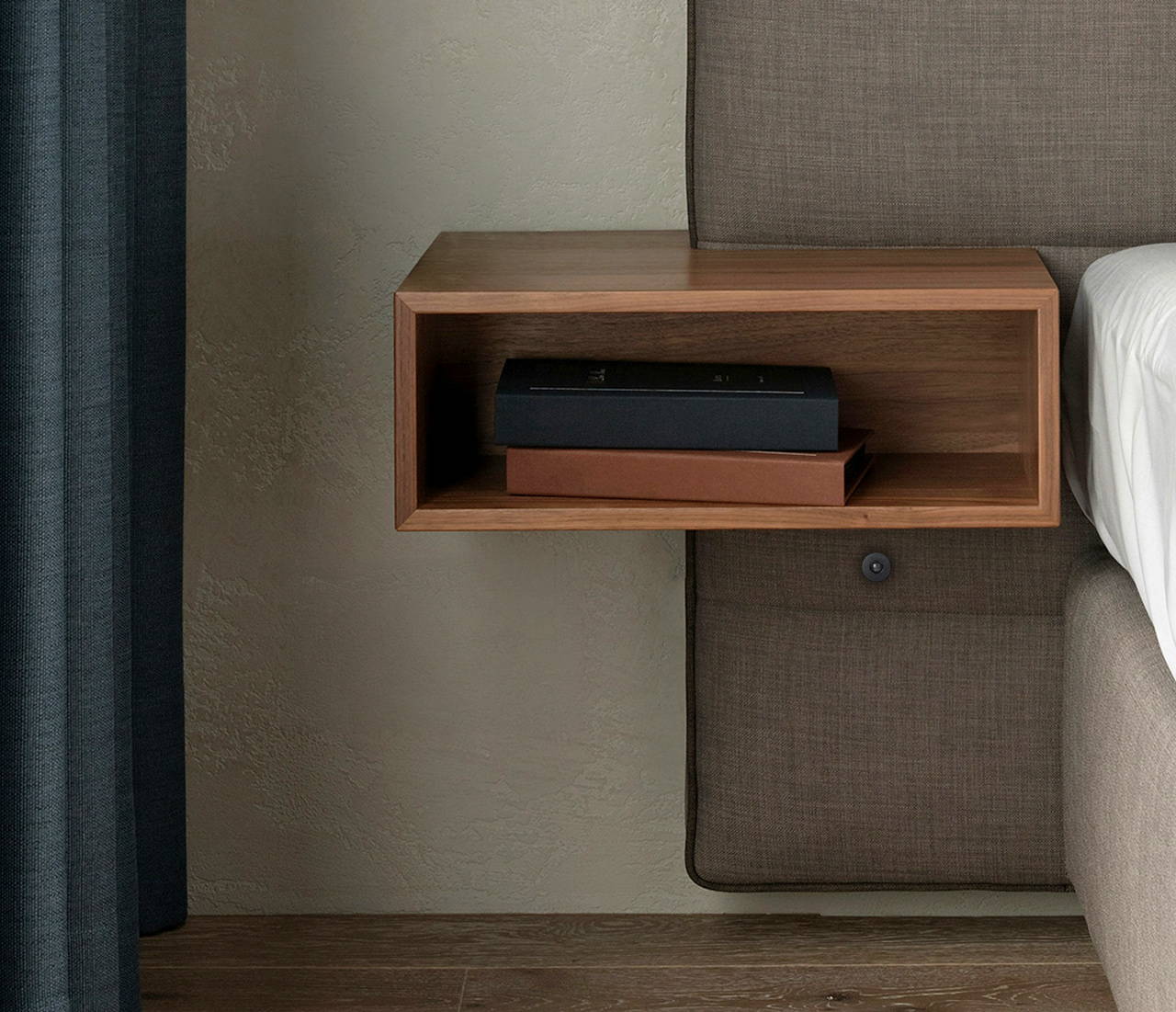

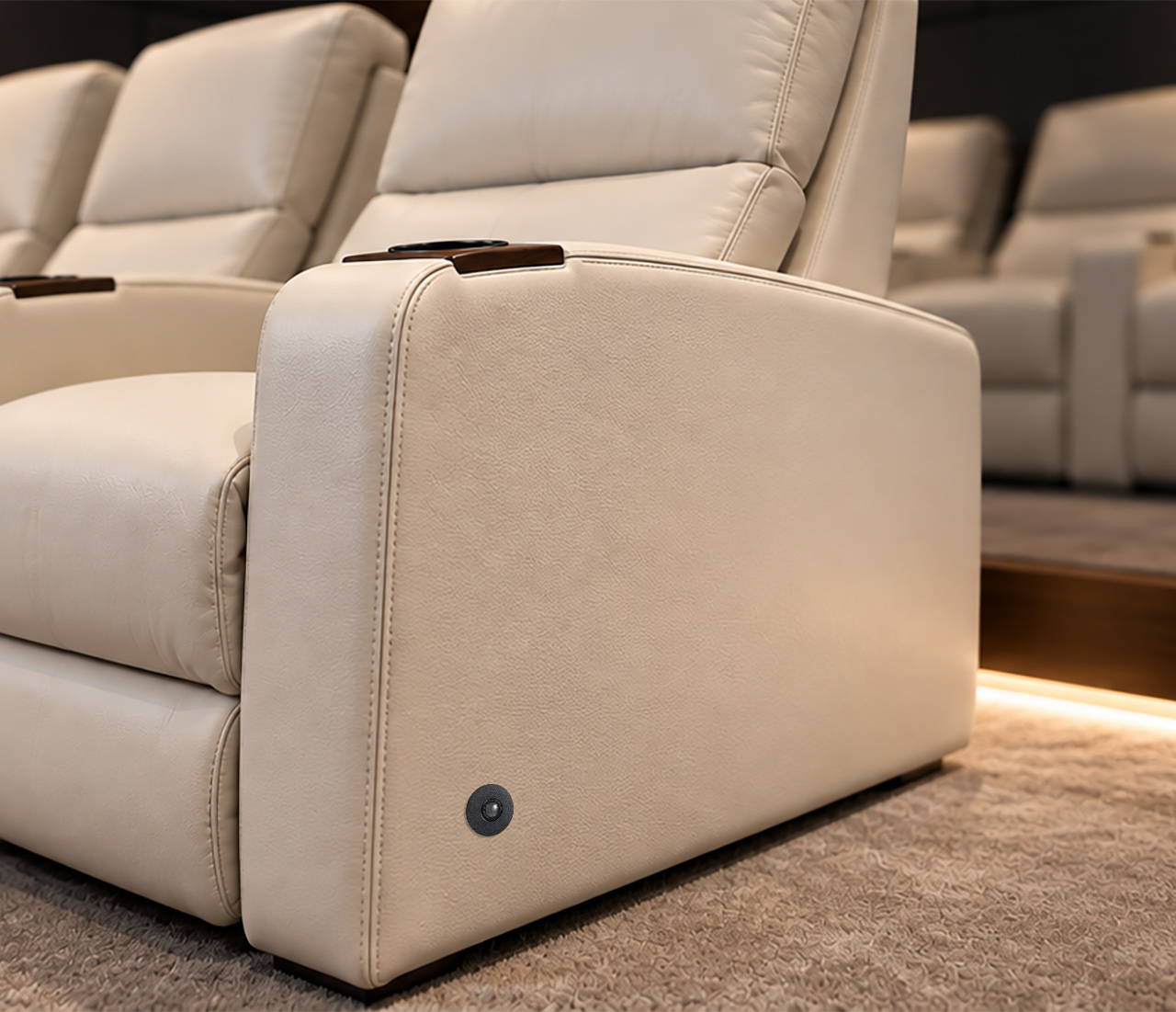

This sensor has been developed for bespoke automation requirements and can only be installed in locations where the installer can access the rear of the installation surface such as wall paneling, joinery, staircases, furniture, and wall plates. The max supported panel thickness is 5mm.

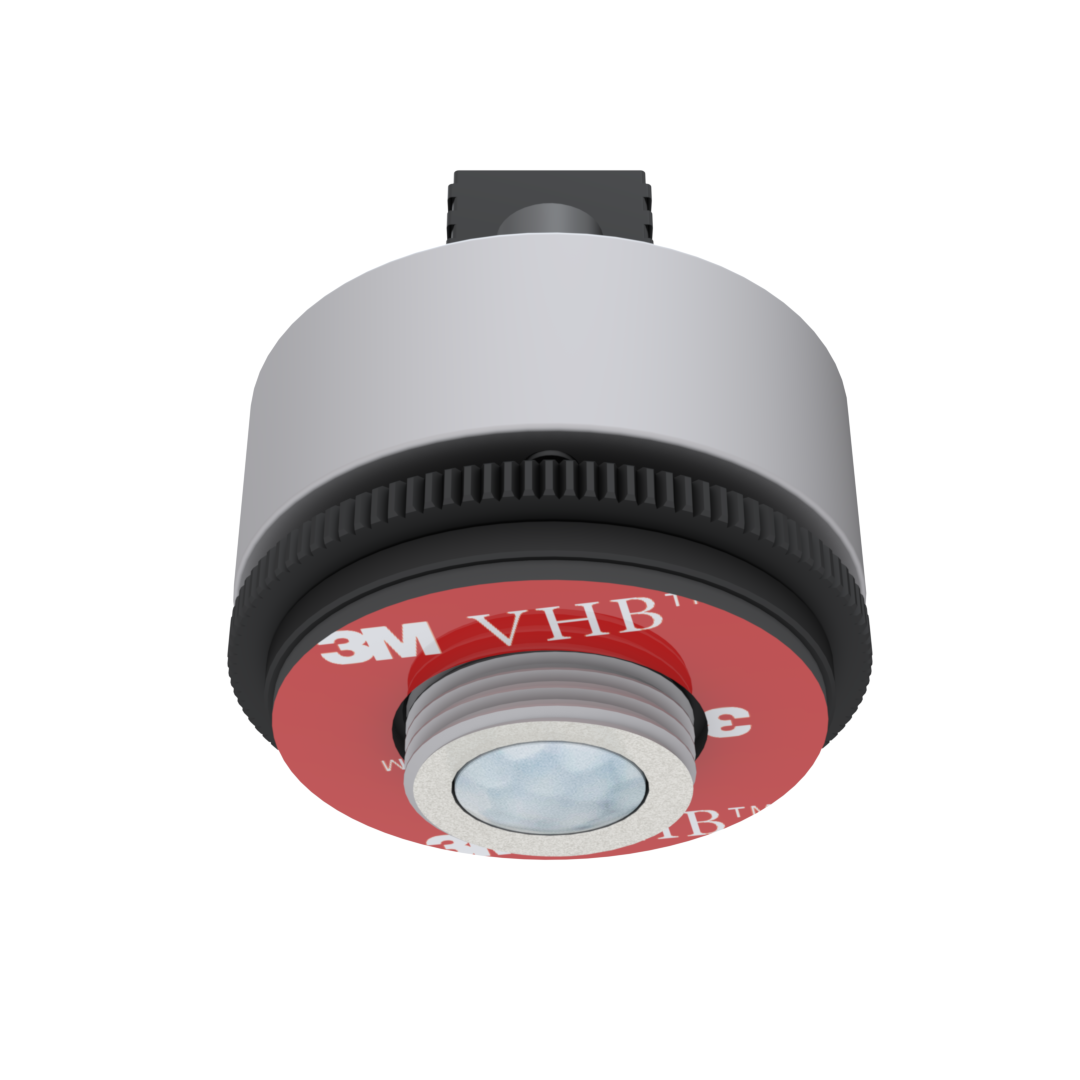

The solid aluminium pinhole sensor unit features a threaded barrel with 2 disc nuts. These two nuts adjust depending on the thickness of the material to ensure a flush installation every time. The top depth setting disc has ultra-strong 3M adhesive that is affixed to the back of the mounting face, with the second threaded bolt used as a locking nut tighten against the depth setting nut to secure the pinhole sensor in place.

Inside the sturdy unit, you will find the same flawlessly reliability that our installers now expect from Faradite, as well as our ever-popular, removable push-fit connector blocks. 5V - 35V DC power and a volt free (dry contact) output which makes it as universally compatible as the rest of our Motion Sensor 360 Volt Free range.
DOWNLOAD PDF DATASHEET

The pinnacle of pinpoint PIR technology

Complete range of Faradite TAP home automation switches laying flat on a white surface
Faradite Brushed Copper TAP-5 on Loxone system
Faradite matt white TAP-1 mounted on a kitchen wall used with Loxone
Faradite TAP-5 smart home light switch on decorative wall
Complete range of Faradite TAP home automation switches laying flat on a white surface
Faradite Brushed Copper TAP-5 on Loxone system
Faradite matt white TAP-1 mounted on a kitchen wall used with Loxone
SMALL JUST GOT SMALLER

Our Motion Sensor 360 range is the industry go-to for small, volt free motion sensors. The Pinhole sensor allows integrators to deliver motion based automation from a visible front of just 15mm.

a


SMALL JUST GOT SMALLER

Our Motion Sensor 360 range is the industry go-to for small, volt free motion sensors. The Pinhole sensor allows integrators to deliver motion based automation from a visible front of just 15mm.

Ultra precise, ultra discreet

Benefits


EXTREMELY DISCREET

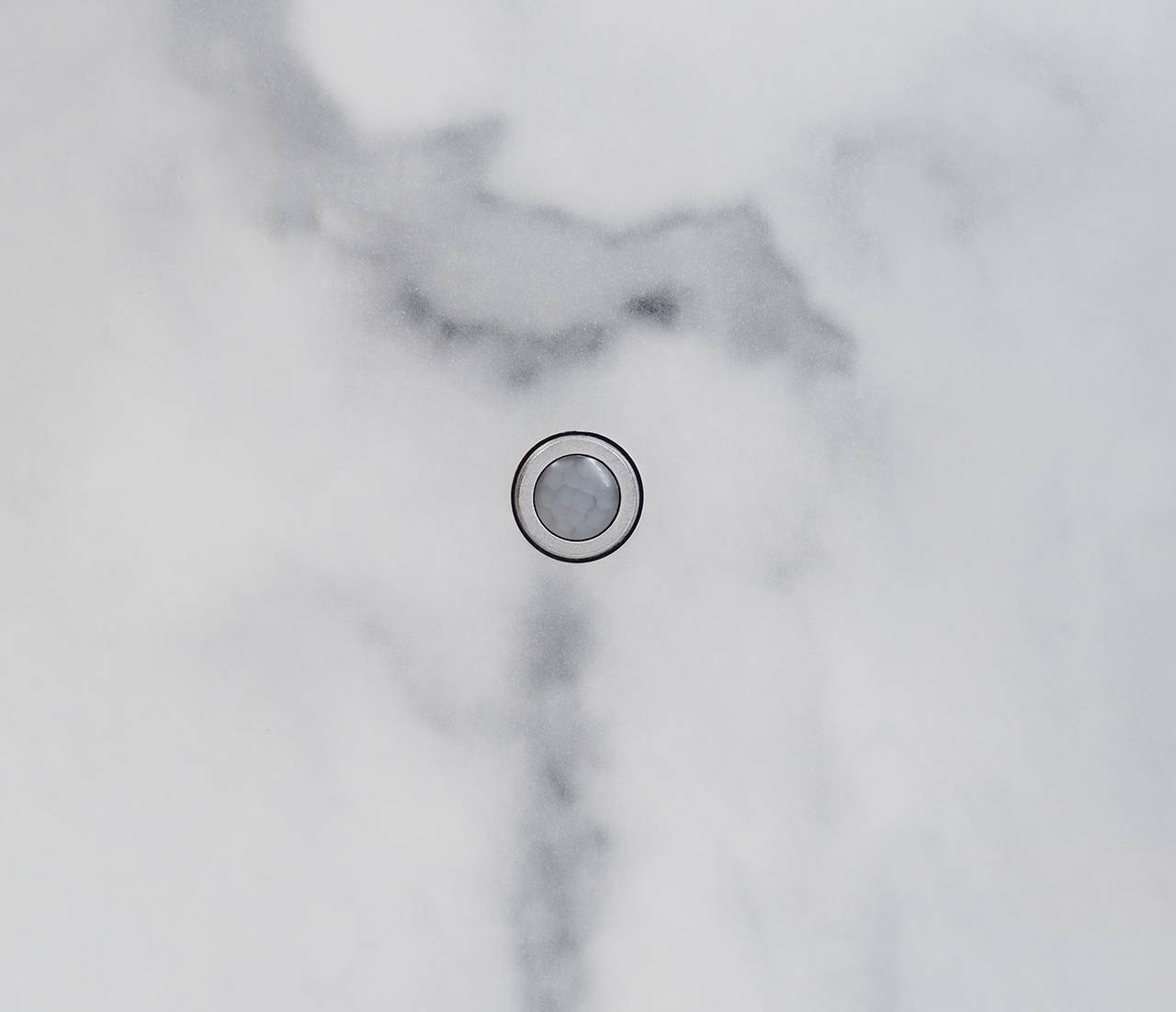

The rear mounted unit provides a great motion detection area from a visible sensor of only 15mm when installed.



Made for specialists


The Pinhole sensor can achieve the highest possible standard of custom installation even in the most demanding projects.



3M Mounting adhesive


The depth nut of the Pinhole sensor is fitted with the strongest 3M VHB adhesive ensuring a solid fit, every time.



DC power


Can be powered from 5V - 35V DC making it ideal for any control system using 5V, 12V, 24V, 30V and 35V DC.



Metal housing


The fully metal unit makes for a very strong and robust device.



MINIMAL DIMENSIONS


The small dimensions of the device make it an easy fit for mounting behind wall plates into back boxes and can be installed into bespoke cabinetry for ultra-targeted custom automation.

SUITE SOLUTIONS

The Pinhole sensor is the ideal solution for the hotel installations where controls are to be installed in a single wall plate.

PANEL PERFECTION

Rear mounting the Pinhole sensor to any suitable third party wall plate is simple and extremely effective in delivering motion based automation, great for hotels and other custom applications.

INSTALLATION STEPS
Black Faradite Motion Sensor 360 Volt Free dry contact push fit terminals

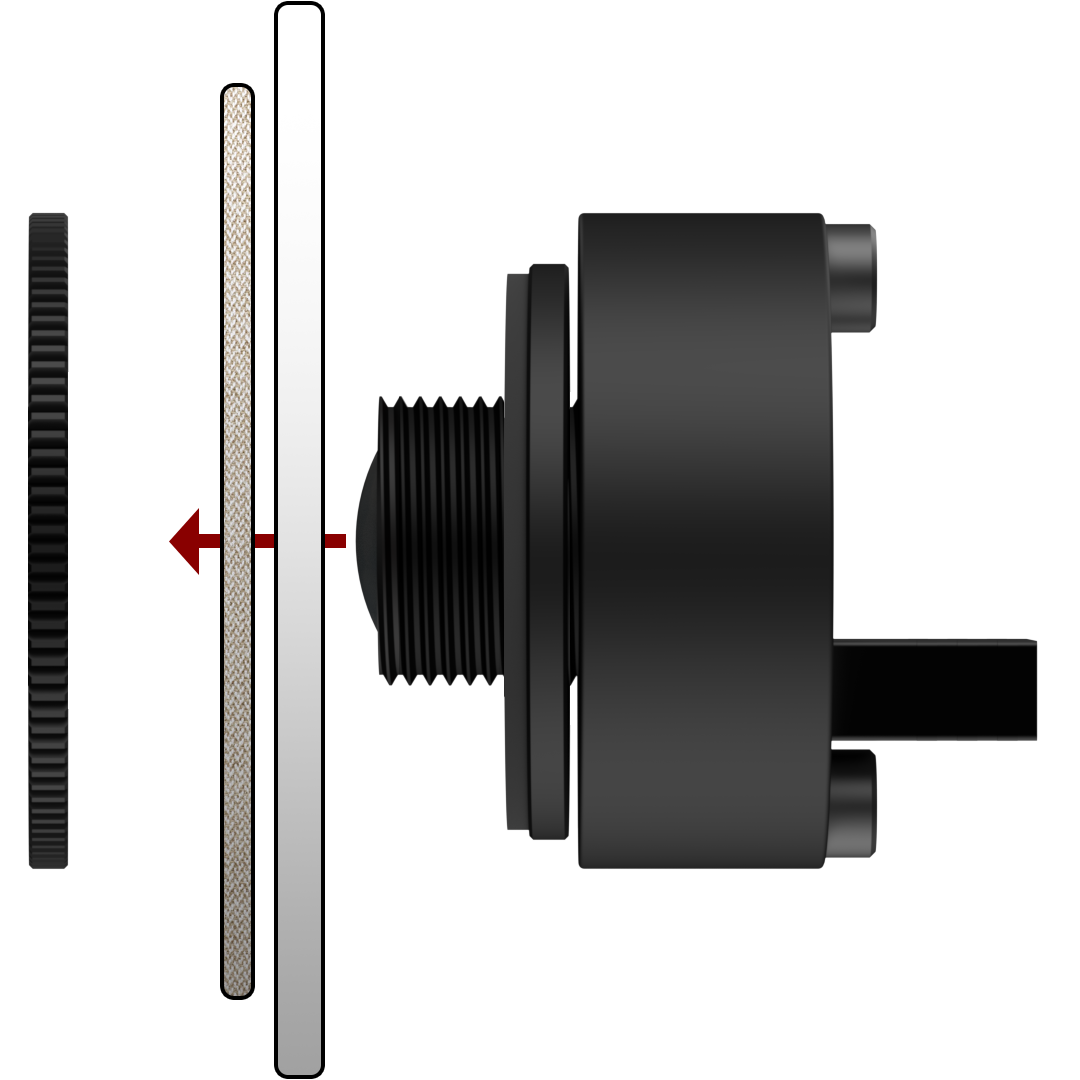

SET SURFACE DEPTH

Twist the depth nut to the depth required for the installation surface.



Black Faradite Motion Sensor 360 Volt Free dry contact connected cable

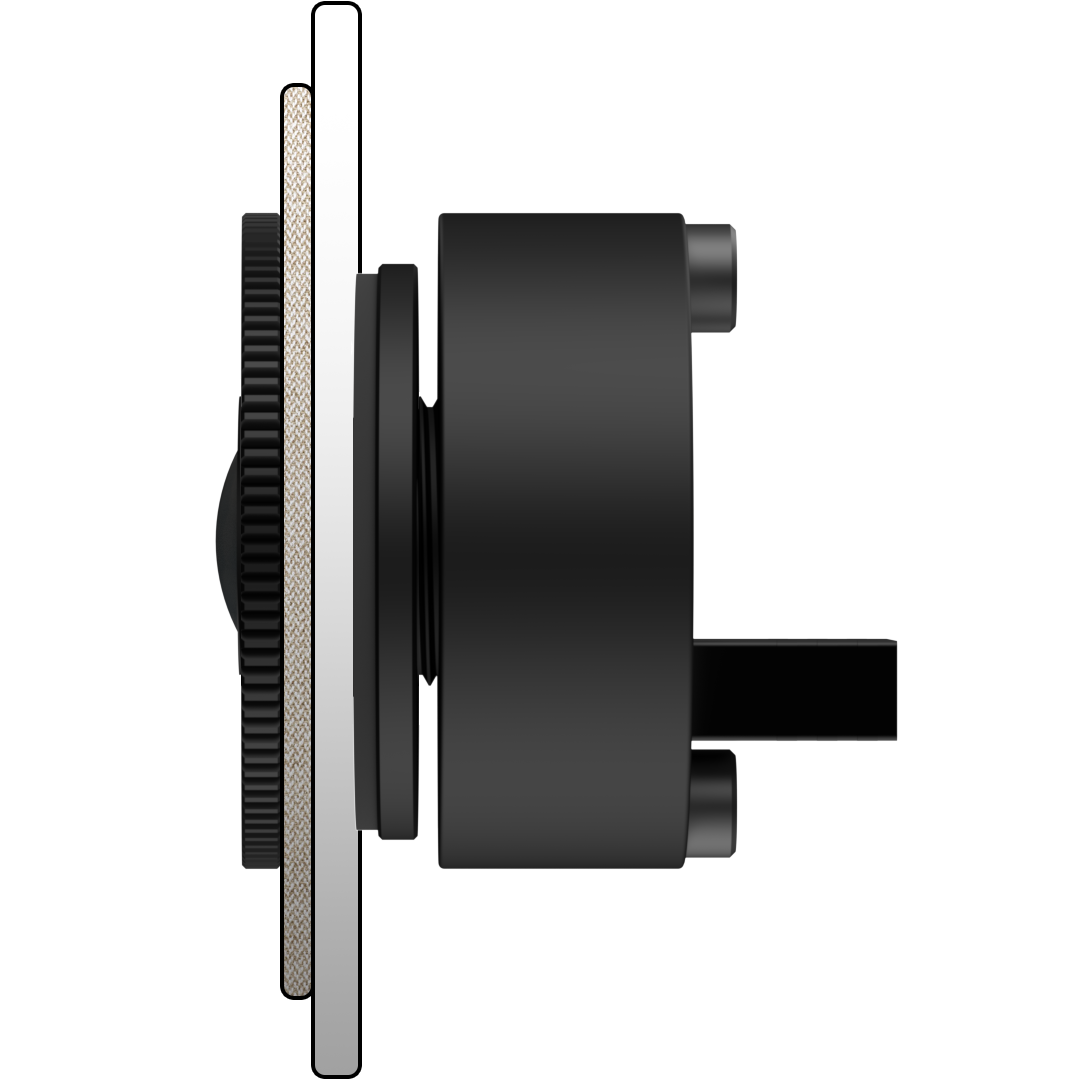

REAR MOUNT TO SURFACE

Using the 3M adhesive, stick the Pinhole sensor to the back of the surface.

Black Faradite Motion Sensor 360 Volt Free dry contact terminals

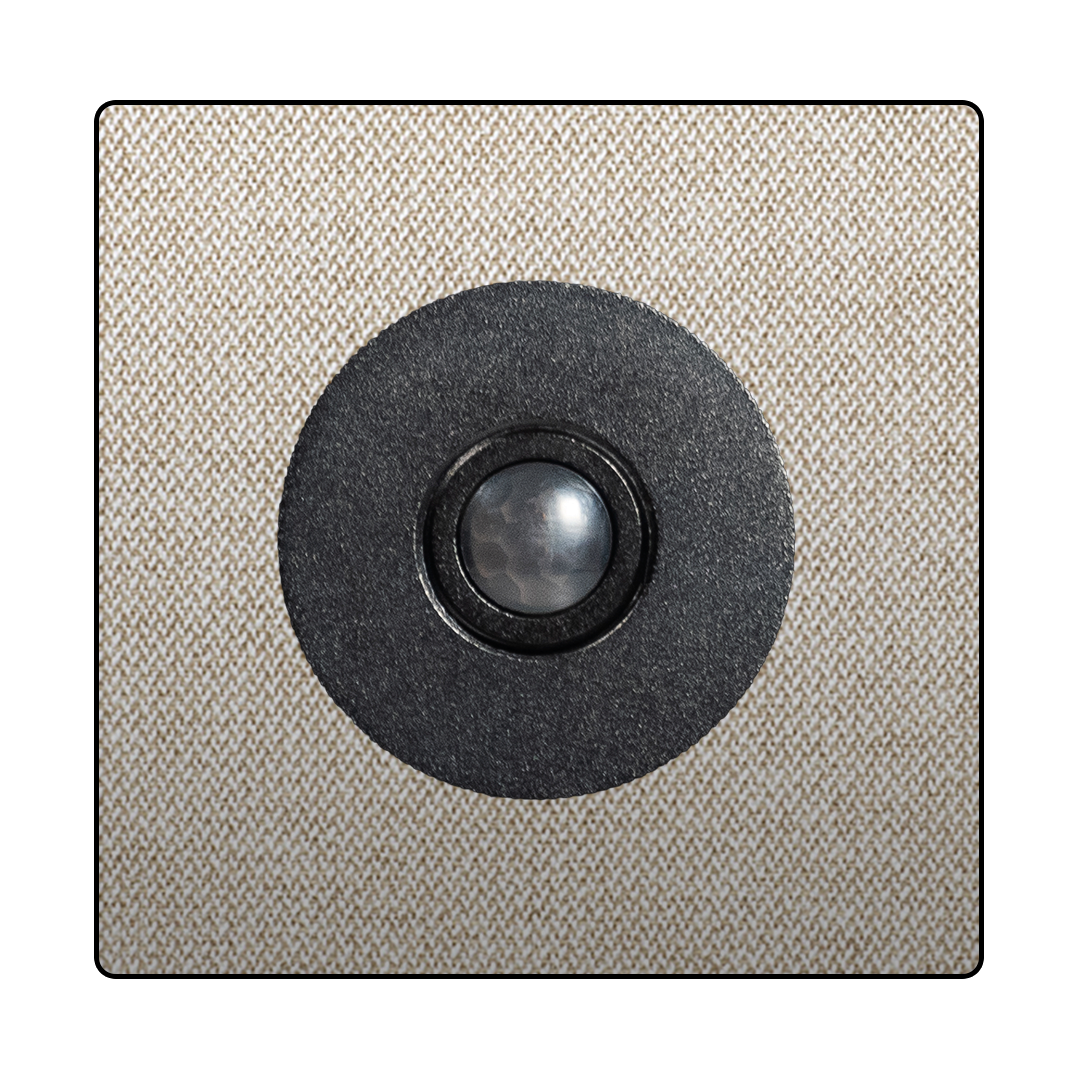

SECURE WITH LOCKING NUT

Twist the second, locking nut against the depth nut to secure the sensor.

PANEL PERFECTION

Rear mounting the Pinhole sensor to any suitable third party wall plate is simple and extremely effective in delivering motion based automation, great for hotels and other custom applications.

PANEL PERFECTION

Rear mounting the Pinhole sensor to any suitable third party panelling is simple and extremely effective in delivering motion based automation, great for hotels and other custom applications.

PANEL PERFECTION

Rear mounting the Pinhole sensor to any suitable third party wall plate is simple and extremely effective in delivering motion based automation, great for hotels and other custom applications.

DIMENSIONS
Black Faradite Pinhole Sensor dimensions
Black Faradite Pinhole Sensor dimensions
Black Faradite Pinhole Sensor dimensions
technical specification



iNSTALLATION


The Motion Sensor 360 Pinhole - Volt Free requires rear access for installation. Drill 15mm hole for sensor, rear mount the depth nut using the included 3M tape. Finally, tighten the locking nut against the depth nut to secure.



pOWER sUPPLY



5V-35 DC @ 24V (3mA)



CONNECTOR


Push fit screwless connector AWG 20- 24 suitable for CAT5 / CAT6.




RANGE / DETECTION AREA


Specified Range 5M / When mounted at a height of 3M, the sensor covers an ~8M diameter floor area. When mounted at 2.5M, it covers a floor area of 5.6M by 6.6M. When Installed vertically a max range of 5M should be observed. The sensor may be triggered by movement up to 9M away in certain circumstances.
