MOTION SENSOR 360 IP67 BLACK- VOLT FREE (DRY CONTACT)

$177.60
In stock
SHIPPING | TAXES | ORDERING
SKU M360-IP-B-VOLF

Notify me when back in stock

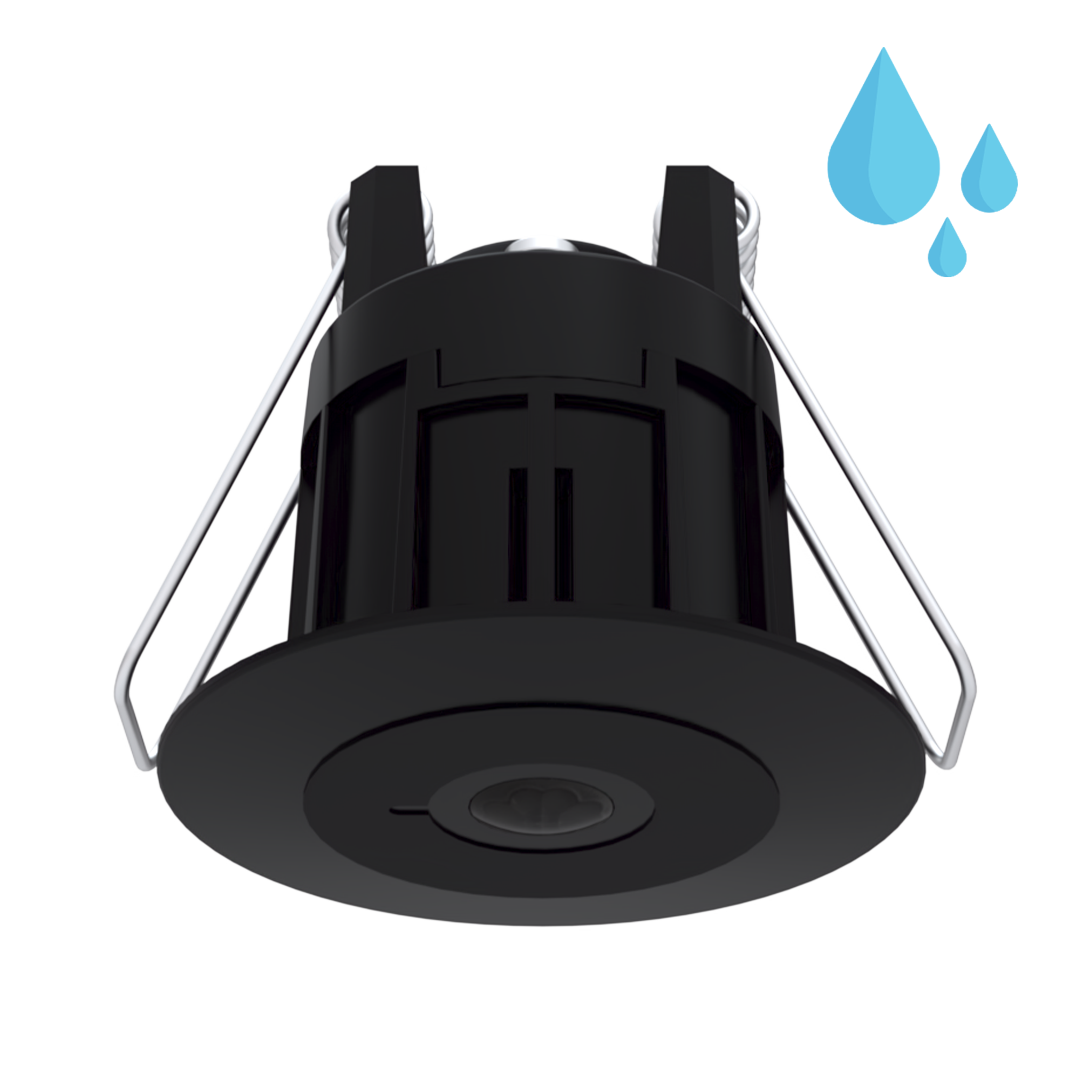

The Faradite Motion Sensor 360 - IP67 - Volt Free (Dry Contact) is a 5-35V low profile, silent, discreet PIR (passive infrared) ceiling mounted motion sensor with an IP67 rating.

The IP67 ensures discrete motion sensing can be delivered in those more demanding areas such as bathrooms, gardens and outside spaces.

The sensor can be used to automate lights in outside spaces, porches and bathrooms due to its IP67 rating.

The sensor can be used with 5-35V home/buillding/lighting control systems that have volt free / dry contact inputs, such as Lutron, Crestron, Loxone and Control4.

DOWNLOAD PDF DATASHEET

IP67 rated motion sensors, for those more demanding locations

Simply connects to multiple systems

Simply Connects to Multiple Systems

Control4 logo

The sensor can be connected directly to a Control4 system using a simple contact closure.

Loxone logo

The sensor can be connected directly to a Loxone smart home using a single digital input.

Rako logo

Savant systems can benefit from the Faradite Motion Sensor 360 IP67 Volt Free with easy integration.

Lutron logo

Great for use with Lutron lighting control systems, using any contact closure input.

Benefits


100% Silent relay


No annoying 'Click'. The Motion Sensor 360 range uses a completely silent, solid state relay.



High IP rating


The IP67 rating means the sensor can be installed in those more demanding locations.



Adjustable sensitivity


Internal sensitivity adjustment allows for customisation of the sensors detection sensitivity.



DC power


Low voltage power, ideal for a broad range of control systems.



Very Small


So small it can be mounted in a business card. The visible front is just
1 59/64" across.



Low profile


A subtle stylish sensor that protrudes less than 9/64" from the ceiling or wall.

Our motion sensors use the latest digital sensors

SMALL AND EFFECTIVE

Here at Faradite, design is everything, but, not at the compromise of functionality. During the design of the Motion Sensor 360 range we wanted to keep the profile to a minimum. The result, a high spec digital sensor that only protrudes 9/64" from the ceiling.


The Motion Sensor 360 range introduces a robust, discrete and stylish option for your smart home.

PUSH-FIT TECHNOLOGY
Black Faradite IP67 Motion Sensor 360 dry contact push fit terminals

STRIP CORE

Our connectors make for a speedy installation. First strip the cable core...

Black Faradite IP67 Motion Sensor 360 dry contact connected cable

PUSH FIT CONNECTION

Simply push the core into the terminal.

Black Faradite IP67 Motion Sensor 360 dry contact terminals

REMOVE CABLE

To remove cables, insert the supplied SIM card remover tool into the slot above the cable terminal to release cable.

Powerful partnership



Pair the Motion Sensor 360 - IP67 - Volt Free with our Sensor Wall Mount Accessory for a beautifully weatherproof, wall mounting solution.


DIMENSIONS
Black Faradite IP67 Motion Sensor 360 35mm dimensions
Black Faradite IP67 Motion Sensor 360 49mm front dimensions
Black Faradite IP67 Motion Sensor 360 depth dimensions
technical specification



iNSTALLATION


To install the Faradite sensor, cut a 1 1/2" hole using a suitable hole saw. Fold the spring clips upwards and push through the hole.



pOWER sUPPLY



5V-35V DC @ 24V (3mA)



CONNECTOR


Push fit screwless connector AWG 20- 24 suitable for CAT5 / CAT6.




RANGE / DETECTION AREA


Specified Range 16' 4" When mounted at a height of 10', the sensor covers a 19' 8"x 19' 8" floor area. When mounted at 9', it covers a floor area of 16' 4" x 16' 4".


CABLE TYPES
Faradite IP67 Motion Sensor 360 cat5 cable entry gland

CAT 5/6

Ideal for CAT 5/6. First, pierce the sealed cable entry with a small screwdriver/nail, next push the CAT cable through ensuring the seal is tight around the cable. Strip cores and terminate into push fit connectors.

Faradite IP67 Motion Sensor 360 stranded cable entry gland

BELDEN

Works with Belden/alarm cable as with CAT cable; pierce the sealed cable entry, push the cable through ensuring the seal is tight around the cable. Strip cores, insert a small screwdriver or the provided tool to open the spring terminals and insert wire.
